Archer C50
AC1200 Wireless Dual Band Router
- Supports 802.11ac standard - the next generation of Wi-Fi
- Simultaneous 2.4GHz 300Mbps and 5GHz 867Mbps connections for 1.2Gbps of total available bandwidth
- 2 dual band external antennas provide stable wireless connections and optimal coverage
- USB Port - easily share a printer locally and files & media with networked devices or remotely via FTP server
- Easy network management at your fingertips with TP-LINK Tether
Fast Wireless Speed with 802.11ac
TP-LINK’s Archer C50 comes with the next generation Wi-Fi standard – 802.11ac, 3 times faster than wireless N speeds and delivering a combined wireless data transfer rate of up to 1.2Gbps. With 300Mbps over the 2.4GHz band and 867Mbps wireless speeds over the crystal clear 5GHz band, the Archer C50 is the superior choice for seamless HD streaming, online gaming and other bandwidth-intensive tasks.
1.2Gbps Dual Band Connections for Lag-Free Work and Entertainment
The Archer C50 operates over both the 2.4GHz and 5GHz bands, ensuring amazing wireless performance. Simultaneous Dual Band offers you the flexibility of two dedicated networks – with multiple times the bandwidth for your needs. Simple tasks like sending e-mails or web browsing can be handled by the 2.4GHz band while bandwidth intensive tasks like online gaming or HD video streaming can be processed by the 5GHz band – all at the same time.
2 External Antennas for Optimal Coverage
With 2 external antennas combined with high quality antenna technology, you can maintain high speeds across greater distances. This provides you with optimal wireless coverage and reliability from anywhere in your large home or office.
USB Port for Storage and Sharing
With USB 2.0 port, you can share a printer locally and files & media with networked devices or remotely via FTP server.
-
Guest Network
Guest Network Access provides secure Wi-Fi access for guests sharing your home or office network.
-
Parental Control
Parental Control allows parents or administrators to establish restricted access policies for children or staff.
-
IPv6 Supported
Archer C50 supports IPv6, the next generation of Internet protocol, helping you to future proof your network.
-
Tether APP
TP-LINK Tether provides the easiest way to access and manage your router with your iOS and Android devices.
| WIRELESS | |
|---|---|
| Standards | Wi-Fi 5IEEE 802.11ac/n/a 5 GHzIEEE 802.11n/b/g 2.4 GHz |
| WiFi Speeds | AC12005 GHz: 867 Mbps (802.11ac)2.4 GHz: 300 Mbps (802.11n) |
| WiFi Range | 3 Bedroom Houses 4× Fixed AntennasMultiple antennas form a signal-boosting array to cover more directions and large areasBeamformingConcentrates wireless signal strength towards clients to expand WiFi range |
| WiFi Capacity | Medium Dual-BandAllocate devices to different bands for optimal performance2×2 MU-MIMOSimultaneously communicates with multiple MU-MIMO clients |
| Working Modes | Router ModeAccess Point ModeRange Extender Mode |
| SECURITY | |
|---|---|
| Network Security | SPI FirewallAccess ControlIP & MAC BindingApplication Layer GatewayIoT Security |
| Guest Network | 1× 5 GHz Guest Network1× 2.4 GHz Guest Network |
| WiFi Encryption | WPAWPA2WAP3WPA/WPA2-Enterprise (802.1x) |
| HARDWARE FEATURES | |
|---|---|
| Interface | 4x10/100 Mbps LAN Ports 1x10/100 Mbps WAN Port |
| Power Supply | 12VDC/1.0A |
| Wireless Standards | IEEE 802.11n/g/b 2.4GHz IEEE 802.11ac/n/a 5GHz |
| Dimensions ( W x D x H ) | 9.1 x 5.7 x 1.4 in. (230.0 * 144.0 * 35.0 mm) |
| Antenna Type | 4 External Antennas |
| HARDWARE | |
|---|---|
| Ethernet Ports | 1× 10/100 Mbps WAN Port4× 10/100 Mbps LAN Ports |
| Buttons | WPS/Wi-Fi ButtonPower On/Off ButtonReset Button |
| Power | 9 V ⎓ 0.85 A |
| WIRELESS FEATURES | |
|---|---|
| Frequency | 2.4GHz and 5GHz |
| Signal Rate | 2.4GHz: Up to 300Mbps 5GHz: Up to 867Mbps |
| Reception Sensitivity | 5GHz: 11a 54M: -73dBm; 11ac VHT20 MCS8: -66dBm; 11ac VHT40 MCS9: -61dBm; 11ac VHT80 MCS9: -58dBm. 2.4GHz: 11g 54M: -75dBm; 11n HT20 MCS7: -73dBm; 11n HT40 MCS7: -70dBm |
| Transmit Power | CE: <20dBm(2.4GHz), <23dBm(5GHz) FCC: <30dBm |
| Wireless Functions | Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics |
| Wireless Security | Provides WPA/WPA2 and WPA-PSK/WPA2-PSK authentication and TKIP/AES encryption security Provides 64/128-bit WEP encryption security. |
| SOFTWARE FEATURES | |
|---|---|
| Quality of Service | WMM, Bandwidth Control |
| WAN Type | Dynamic IP, Static IP, PPPoE, L2TP, PPTP |
| Management | Access Control, Local Management, Remote Management |
| DHCP | Server, Client, DHCP Client List, Address Reservation |
| Port Forwarding | Virtual Server, Port Triggering, UPnP, DMZ |
| Dynamic DNS | DynDns, NO-IP |
| Access Control | Parental Control, Local Management Control, Host list, Access Schedule, Rule Management |
| Protocols | IPv4 and IPv6 |
| SOFTWARE | |
|---|---|
| Protocols | IPv4IPv6 |
| EasyMesh | Mesh networking creates smooth, fast, stable roaming. Archer C50 can build an EasyMesh network with devices that use EasyMesh technology. It also works with other TP-Link products to create a OneMesh network. Eliminate Wi-Fi dead zones, expand your network, and fill your entire home with high-speed Wi-Fi.Learn More> |
| Parental Controls | URL FilteringTime Controls |
| WAN Types | Dynamic IPStatic IPPPPoEPPTPL2TP |
| Quality of Service | QoS by Device |
| Cloud Service | OTA Firmware UpgradeTP-Link IDDDNS |
| NAT Forwarding | Port ForwardingPort TriggeringDMZUPnP |
| IPTV | IGMP ProxyIGMP SnoopingBridgeTag VLAN |
| DHCP | Address ReservationDHCP Client ListServer |
| DDNS | TP-LinkNO-IPDynDNS |
| Management | Tether AppWebpageCheck Web Emulator> |
| OTHER | |
|---|---|
| System Requirements | Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browserCable or DSL Modem (if needed)Subscription with an internet service provider (for internet access) |
| Certifications | FCC, CE, RoHS |
| Environment | Operating Temperature: 0℃~40℃ (32℉ ~104℉)Storage Temperature: -40℃~70℃ (-40℉ ~158℉)Operating Humidity: 10%~90% non-condensingStorage Humidity: 5%~90% non-condensing |
| TEST DATA | |
|---|---|
| WiFi Transmission Power | CE EIRP:<20dBm(2.4GHz)<23dBm(5GHz)FCC:<30dBm(2.4GHz & 5GHz) |
| WiFi Reception Sensitivity | 5GHz:11a 54M: -73dBm11ac VHT20 MCS8: -68dBm11ac VHT40 MCS9: -64dBm11ac VHT80 MCS9: -60dBm2.4GHz:11g 54M: -76dBm11n HT20 MCS7: -74dBm11n HT40 MCS7: -71dBm |
| PHYSICAL | |
|---|---|
| Dimensions (W×D×H) | 9.1 × 5.7 × 1.5 in(229.9 × 144.2 × 36.9 mm) |

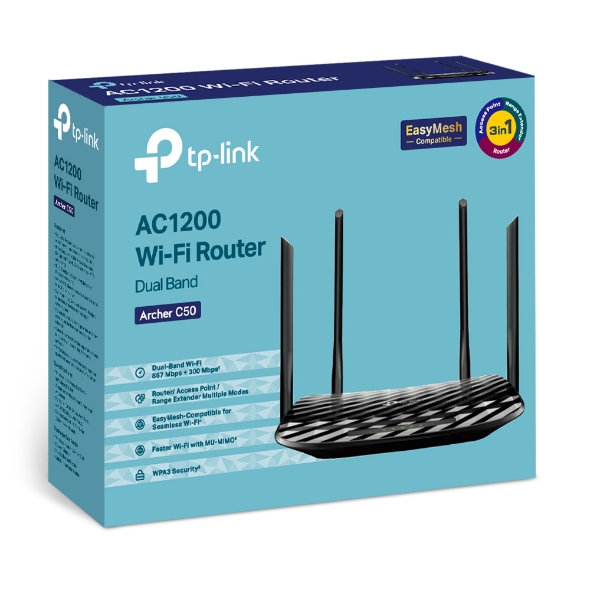

| Package Contents | Wi-Fi Router Archer C50Power AdapterRJ45 Ethernet CableQuick Installation Guide |
| OTHERS | |
|---|---|
| Certification | CE, FCC, RoHS |
| Package Contents | AC1200 Wireless Dual Band Gigabit RouterPower AdapterQuick Installation GuideRJ45 Cable |
| System Requirements | Microsoft Windows 10/8.1/8/7/Vista/XP/2000/NT/98SE, MAC OS, NetWare, UNIX or Linux |
| Environment | Operating Temperature: 0℃–40℃ (32℉–104℉)Storage Temperature: -40℃–60℃ (-40℉–140℉)Operating Humidity: 10%–90% non-condensingStorage Humidity: 5%–90% non-condensing |
