SM6220-1M

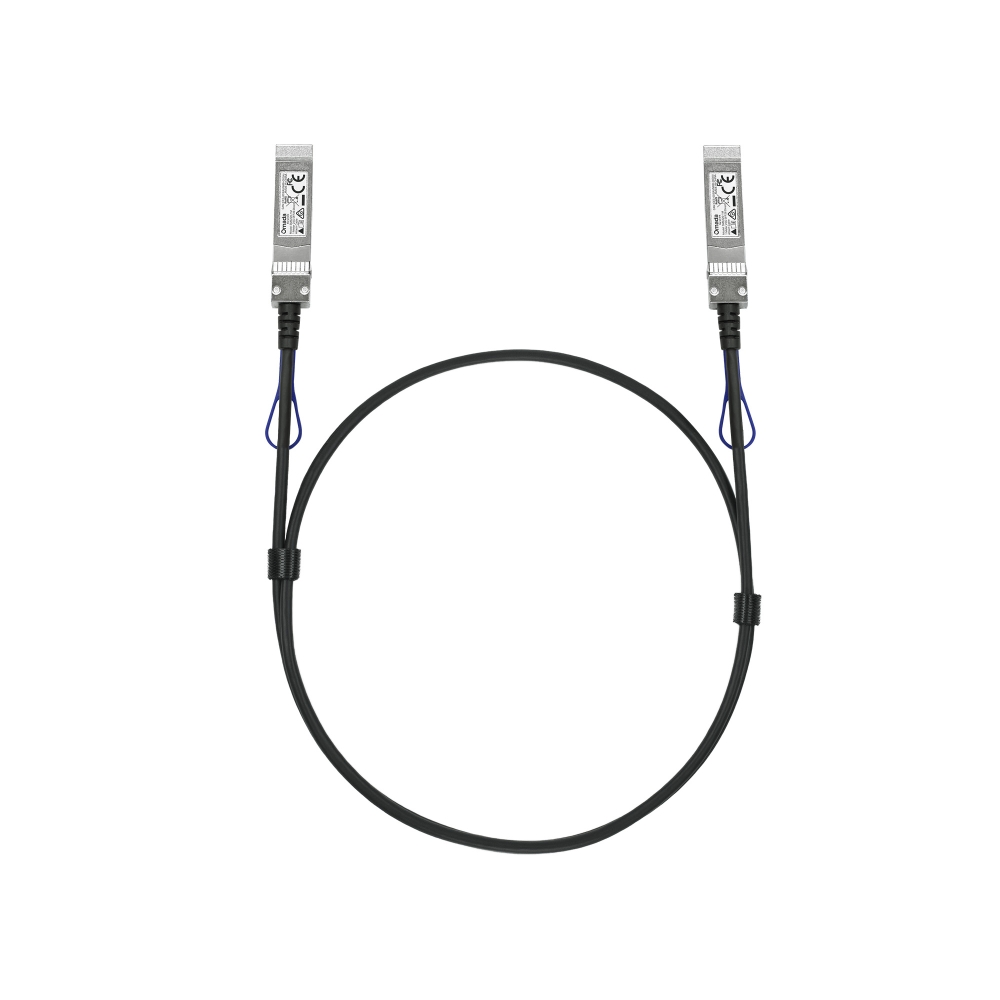

NewOmada 1 Meter 25G SFP28 Direct Attach Cable
- 25G SFP28 connector on both sides
- Drives 25 Gigabit Ethernet (1m distance)
What This Product Does
With a passive twin-ax cable assembly of 1 meter and two SFP28 connectors on each side, SM6220-1M is suitable for short distances and offers a cost-effective way to connect within racks and across adjacent racks.
| GENERAL | |
|---|---|
| Product Dimensions | • Plug: 2.26*0.53*0.34 in (57.5*13.55*8.55 mm);• Overall length: 39.37 in (1,000 mm) |
| SFP28 Cable | |
|---|---|
| Environment | • Operating Temperature: 0–70 ℃ (32–158 ℉)• Storage Temperature: -40–85 ℃ (-40–185 ℉)• Operating Humidity: 10–90% RH non-condensing• Storage Humidity: 5–90% RH non-condensing |
| Supported Data Rate | 25 Gbps / 10 Gbps / 1 Gbps |
| Conductor | Silver Plated Copper |
| Wire Gauge | 30AWG |
| Minimum Bend Radius | 22.5mm |
| Cable Length | 1 m |
