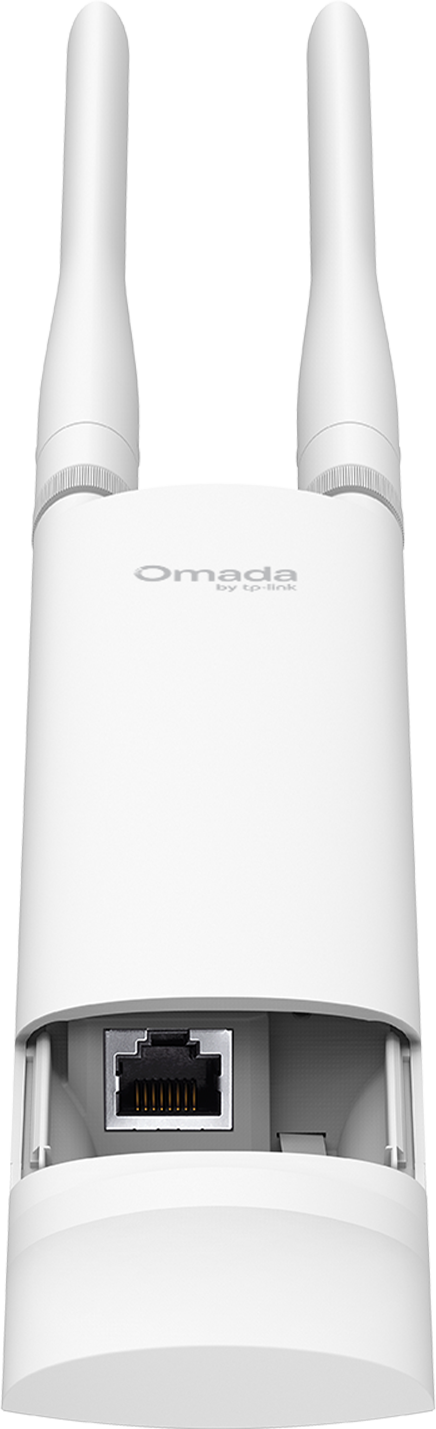

AC1200 Wireless MU-MIMO Gigabit Indoor/Outdoor Access Point
- Ideal for Outdoor Environment: IP65 weatherproof enclosure for outdoor Wi-Fi applications.
- Fast Dual-Band Wi-Fi: Simultaneous 300 Mbps on 2.4 GHz and 867 Mbps on 5 GHz totals 1167 Mbps Wi-Fi speeds.†
- Long-Range Coverage: Dedicated high-power amplifier and professional antennas along with the latest generation 802.11ac Wave 2 MU-MIMO technology.
- Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)‡, Centralized Cloud Management, and Intelligent Monitoring.
- Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
- Omada Mesh Technology: Enables wireless connectivity between APs for extended range, making wireless deployments more flexible and convenient.*
- Seamless Roaming: Even video streams and voice calls are unaffected as users move between locations.*
- PoE Support: Support both standard 802.3af/at and Passive PoE (PoE adapter included) for flexible installations.
AC1200 Wave 2 with Mesh Technology for Unlimited Business Wi-Fi
Omada EAP225-Outdoor
Omada Mesh Technology
-
Intelligent Self-organization
Omada EAPs with Mesh Technology, automatically choose the best route to extend your Wi-Fi further and more flexibly.
-
Self-healing
If one link has an issue, the system will automatically reroute data via the other Omada devices to make sure you stay online.
Superior Wi-Fi Performance and Long-Range Coverage
Dedicated high-power amplifier and professional antennas along with the latest generation 802.11ac Wave 2 MU-MIMO technology, ensure superior Wi-Fi peroformance and long-range coverage over 2.4GHz and 5GHz wireless bands.†
- MU-MIMO
- Beamforming
- Band Steering
- Airtime Fairness
*Based on field tests. The real transmission range may vary, according to the environment, receiving device, etc.
Fast Roaming for Seamless Mobility
Specially Designed Weatherproof Enclosure for
Outdoor Environment
Rated as IP65 during Ingress Protection testing, a resilient weatherproof enclosure protects the access points against harsh outdoor condition.△
6KV Lightning Protection and 15KV ESD Protection
No Ingress of Dust
Water Proof Enclosure
Excellent Hardware Designs
With special design of its antenna, appearance, power options and installation methods, EAP225-Outdoor can perfectly fit for different scenarios both indoors and outdoors.
Omada SDN—Smarter Cloud Solution for Business Networking
Omada Software Defined Networking (SDN) platform integrates network devices including access points, switches and gateways, guaranteeing powerful business network with higher efficiency, higher security, and higher reliability.
EAP225-Outdoor
Cloud-Based Controller
Hassle-Free Centralized Cloud Management:
100% centralized cloud management of whole network from different sites—all controlled from a single interface anywhere, anytime.
Easy Management with the Omada App
Follow configuration instructions on the free Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smart phone or tablet.
Related Cases
-
Arion Hotel
Omada's suitable networking solution has improved the overall connection experience in Arion Hotel.
Arion Hotel
Omada's suitable networking solution has improved the overall connection experience in Arion Hotel.
“We knew that our premises had wiring problems. We have tried various other networking solutions to no avail. We greatly appreciated the fact that when we approached TP-Link and its partner (Go Group), they did not just try to sell us materials but did a needs-based survey as well as a site survey. It was crucial that the suggested design, installation, and operation, was not based on the best available solution but on the most suitable solution, for our case, as the Project Manager of TP-Link said. The result was much more than the expected and contributes to a remarkable customer experience, along with a smooth hospitality operation.“ —-Commercial Manager of Arion Hotel -
Epic Hotel Group Greece
TP-Link Wi-Fi Network Solution in 3 State-Of-The-Art Hotels of the Epic Hotel Group, Greece
Epic Hotel Group Greece
TP-Link Wi-Fi Network Solution in 3 State-Of-The-Art Hotels of the Epic Hotel Group, Greece
“TP-Link team and Datalab were very efficient in the design, installation and operation of the overall solution in our hotels. As a result, we have great systems in place that contribute to a remarkable customer experience.” ——By Mr. Petros Kefalianos (General Manager) -
Althea Village Greece
TP-Link Connects Communities with Reliable and Intelligent Infrastructure
Althea Village Greece
TP-Link Connects Communities with Reliable and Intelligent Infrastructure
“We chose TP-Link materials because: (1) We evaluated the reliability and performance of them as being sufficient enough, in relation with their cost and competition. (2) Whenever we needed their people, they were ready to support us appropriately. (3) The TP-Link suggested partner, was having excellent “Know How” of his job and he was acting with professionalism in collaboration with TP-Link Hellas office. For sure, we will trust again the people of TP-Link Hellas, in the future. ” ——Mr. Nikos Skarakis (Business Owner) -
RedesSemFio
Omada Builds Full-Covered WiFi with Centralized Management for an Accommodation in Brazil
RedesSemFio
Omada Builds Full-Covered WiFi with Centralized Management for an Accommodation in Brazil
| HARDWARE FEATURES | |
|---|---|
| Interface | 1× Gigabit Ethernet (RJ-45) Port (Support 802.3af/at PoE (Alternative A) and Passive PoE) |
| Button | Reset |
| Power Supply | • 802.3af PoE• 24V Passive PoE (+4,5pins; -7,8pins. PoE Adapter Included) |
| Power Consumption | 10.5W |
| Dimensions ( W x D x H ) | 1.8 × 1.1 × 8.5 in (46 × 26.7 × 214.9 mm)(without antenna & mounting kit) |
| Antenna | 2 Dual-Band Omni Antennas (External Detachable)• 2.4 GHz: 2× 3 dBi• 5 GHz: 2× 5 dBi |
| Weatherproof Enclosure | IP65 |

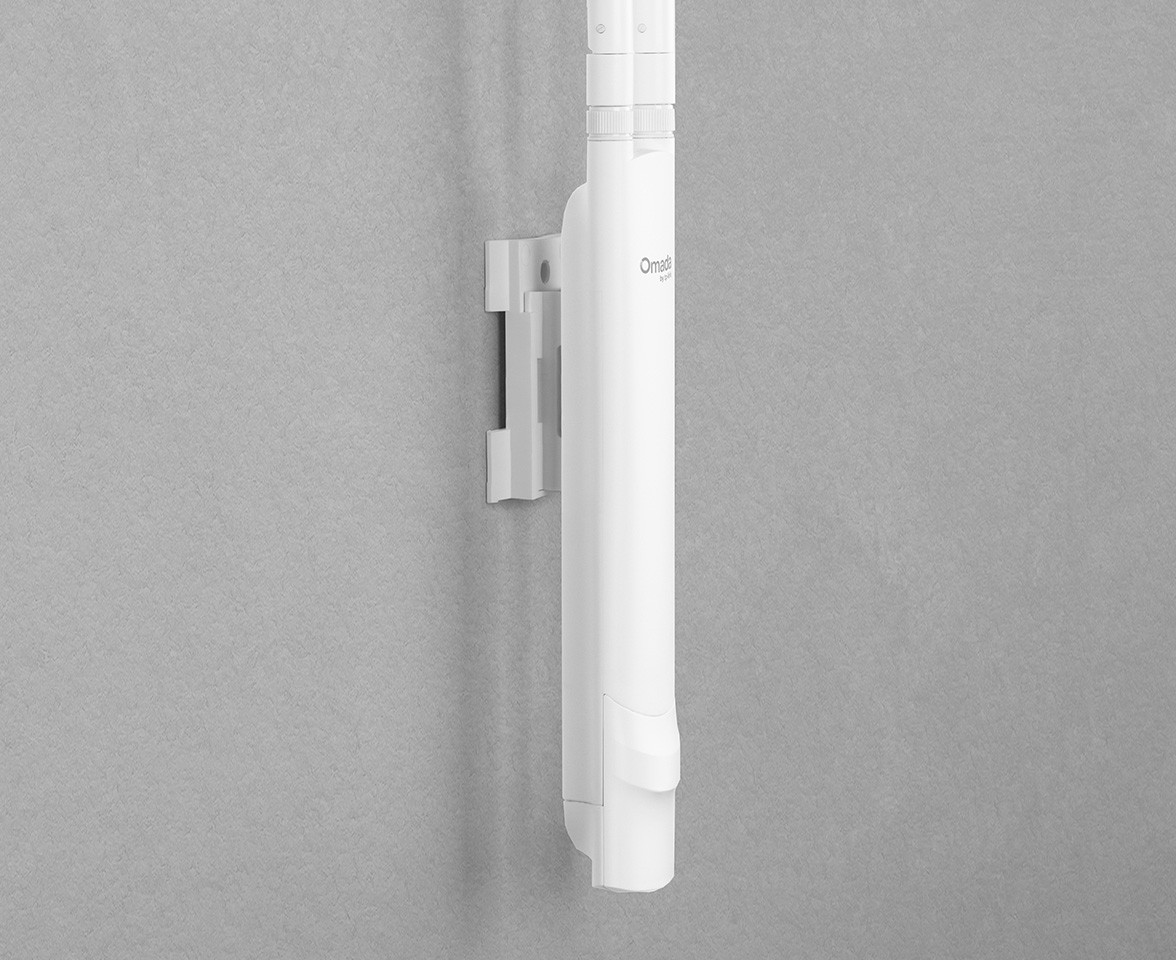

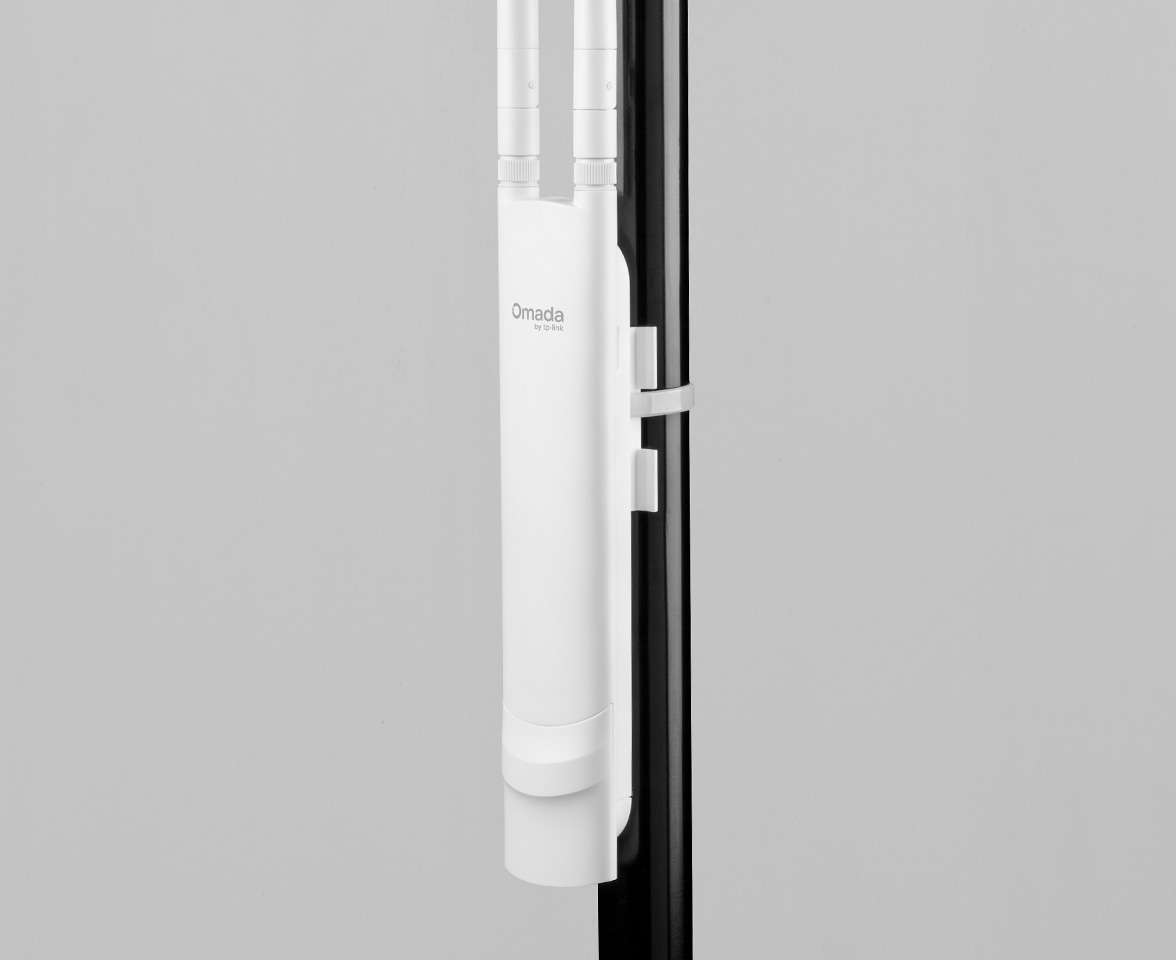

| Mounting | Pole/Wall Mounting (Kits included) |
| WIRELESS FEATURES | |
|---|---|
| Wireless Standards | IEEE 802.11a/b/g/n/ac |
| Frequency | 2.4GHz, 5GHz |
| Signal Rate | • 802.11ac: 6.5 Mbps to 867 Mbps(MCS0-MCS9,NSS = 1 to 2 VHT20/40/80) • 802.11n: 6.5 Mbps to 300 Mbps (MCS0-MCS15, HT 20/40)• 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps• 802.11b: 1, 2, 5.5, 11Mbps• 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| Wireless Functions | • Multiple SSIDs（Up to 16 SSIDs, 8 for each band）• Enable/Disable Wireless Radio• Automatic Channel Assignment• Transmit Power Control （Adjust Transmit Power on dBm）• QoS(WMM)• MU-MIMO• Seamless Roaming(802.11k/v/r)*• Omada Mesh*• Airtime Fairness• Beamforming• Band Steering• Load Balance• Rate Limit• Reboot Schedule• Wireless Schedule• Wireless Statistics based on SSID/AP/Client |
| Wireless Security | • Captive Portal Authentication*• Access Control• Wireless Mac Address Filtering• Wireless Isolation Between Clients• SSID to VLAN Mapping• Rogue AP Detection• 802.1X Support |
| Transmission Power | • CE: <20 dBm (2.4 GHz, EIRP), <27 dBm(5 GHz, EIRP)• FCC: <23 dBm (2.4 GHz), <22 dBm(5 GHz) |
| MANAGEMENT | |
|---|---|
| Omada App | Yes |
| Centralized Management | • Omada Cloud-Based Controller• Omada Hardware Controller (OC300)• Omada Hardware Controller (OC200)• Omada Software Controller |
| Cloud Access | Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller. |
| Email Alerts | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1, v2c, v3 |
| System Logging Local/Remote Syslog | Yes |
| SSH | Yes |
| Web-based Management | Yes |
| L3 Management | Yes |
| Multi-site Management | Yes |
| Management VLAN | Yes |
| Zero-Touch Provisioning | Yes. Requiring the use of Omada Cloud-Based Controller. |
| OTHERS | |
|---|---|
| Certification | CE, FCC, RoHS |
| Package Contents | • Access Point EAP225-Outdoor• Passive PoE Adapter• Power Cord• Mounting Kits• Installation Guide• Waterproof Ruber Insert• Waterproof Antenna |
| System Requirements | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux |
| Environment | • Operating Temperature: -30–70 ℃ (-22–158 ℉)• Storage Temperature: -40–70 ℃ (-40–158 ℉)• Operating Humidity: 10–90% RH non-condensing• Storage Humidity: 5–90% RH non-condensing |
†Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage are not guaranteed and will vary as a result of 1) environmental factors, including building materials, physical objects, and obstacles, 2) network conditions, including local interference, volume and density of traffic, product location, network complexity, and network overhead, and 3) client limitations, including rated performance, location, connection, quality, and client condition.
‡Zero-Touch Provisioning requires the use of Omada Cloud-Based Controller. Please go to Omada Cloud-Based Controller Product List to find all the models supported by Omada Cloud-Based Controller.
*Omada Mesh, Seamless Roaming, and Captive Portal require the use of Omada SDN controllers. Please go to Omada Mesh Product List to find all the models supported by Omada mesh technology, and refer to the User Guides of Omada SDN controllers for configuration methods.
△Protection against lightning and electro-static discharge may be achieved through proper product setup, grounding and cable shielding. Refer to the instruction manual and consult an IT professional to assist with setting up this product.
