ES216G

신규 제품

Omada 16-Port Gigabit Easy Managed Switch

16× 10/100/1000Mbps RJ45 ports
Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features
Centralized Cloud Management via the web or the Omada app^†
VLAN, Port Isolation, Cable Test^△, QoS^△for reliable surveillance networking
Automatic Loop Prevention and IGMP Snooping
Fanless design for silent operation
Durable metal casing and desktop/rack mounting design

Learn more about Omada Cloud SDN>

16× Gigabit
RJ45 Ports
Fanless Design for
Silent Operation
Easy Centralized
Management^†
Omada App^†
Traffic
Separation
Traffic
Prioritization^△
Automatic
Loop Prevention
Cable Test^△

Omada Cloud Essentials — A Free and Easy Cloud-Based Network Management

Omada Cloud Essentials is a free, easy-to-use version of the Omada Cloud-based Controller. It provides cloud-based centralized management and monitoring for the Omada networking system, covering access points, switches, and gateways, ideal for surveillance networks and small businesses.

Learn More >

Cloud Access

1. Log in with your TP-Link ID*
2. Add the Omada Essential
Cloud-Based Controller

Web Browser

Omada App

Omada Cloud Essentials

Omada Gateways

Omada Switches

Omada
Access Points

Cloud

Internet

*Please go to https://omada.tplinkcloud.com to log in with your TP-Link ID.

Lifetime Free Cloud without
Any Additional Fees
Exists Entirely in the Cloud.
No Hardware or Software
Controller Needed
Cloud Centralized
Management for Multiple Sites
Access Anytime via
Omada App or Web
Easy Setup, Use, and
Maintenance
Unlimited Management
Scale
Zero-Touch Provisioning
(ZTP) without Unboxing

*The gateway requires one-step configuration
Seamlessly Upgrade to
Omada Cloud Standard
with a Subscription

*Available from Q2 2025.

Abundant Functions for Reliable Surveillance Networking

Secure Traffic
Separation
Priority Video
Quality Guaranteed^△
Safer Camera
Networking via
Port Isolation
Simplify Maintenance
with Cable Test^△

하드웨어 사양
인터페이스	• 16× 10/100/1000 Mbps RJ45 Ports • Auto-Negotiation/Auto MDI/MDIX
팬(Fan) 수량	Fanless
설치	• Desktop • Rackmountable
물리적 보안 잠금 장치	√
전원 공급	100-240 V~50/60 Hz

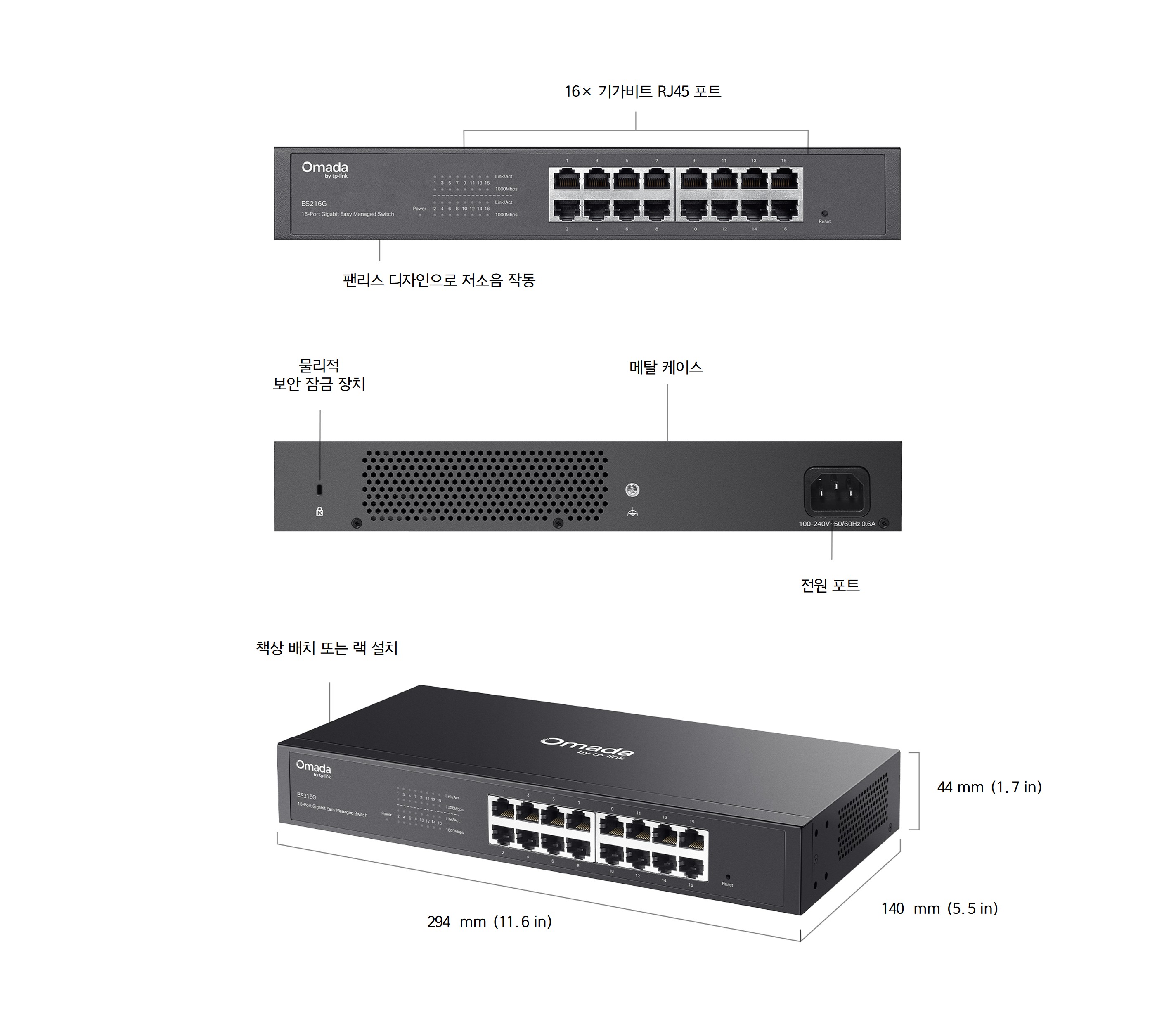

크기 ( 가로 x 세로 x 높이 )	11.6 × 5.5 × 1.7 in (294× 140 × 44 mm)
Surge Protection	±6kV

성능
스위칭 용량	32 Gbps
패킷 전달 속도	23.8 Mpps
MAC 주소 테이블	8K
패킷 버퍼 메모리	4 Mbit
점보 프레임	15 KB

소프트웨어 기능
서비스 품질(QoS)	• Port-based/802.1p/DSCP QoS • 8 Priority Queues • Priority Schedule Mode - WRR (Weighted Round Robin) • Queue Weight Config • Bandwidth Control - Port-Based Rating Limit • Storm Control - Multiple Control Modes (kbps/pps) - Broadcast/Multicast/Unknown-Unicast Control^△
L2 기능	• Static Link Aggregation • Loop Prevention / Loopback Detection • Flow Control - 802.3x Flow Control • Mirroring - Port Mirroring - One-to-One - Many-to-One - Ingress/Egress/Both • Port Statistics - Port Mirror Status - Traffic Statistics • 802.1ab LLDP
L2 멀티캐스트	• IGMP Snooping - IGMP v1/v2/v3 Snooping - Fast Leave
VLAN	• MTU VLAN • Port-Based VLAN • 802.1Q Tag VLAN - Max 32 VLAN Groups - 4K VID
전송 방법	Store-And-Forward

관리
Omada 앱	Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
중앙 집중식 관리	• Omada Cloud-Based Controller • Omada Hardware Controller • Omada Software Controller
클라우스 액세스	Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
제로 터치 프로비저닝	Yes. Requires the use of Omada Cloud-Based Controller
관리 기능	• Web-based GUI • DHCP Client • Cable Diagnostics • Automatic Device Discovery^† • Batch Configuration^† • Batch Firmware Upgrading^† • Unified Configuration^†

기타
인증	FCC, CE, RoHS

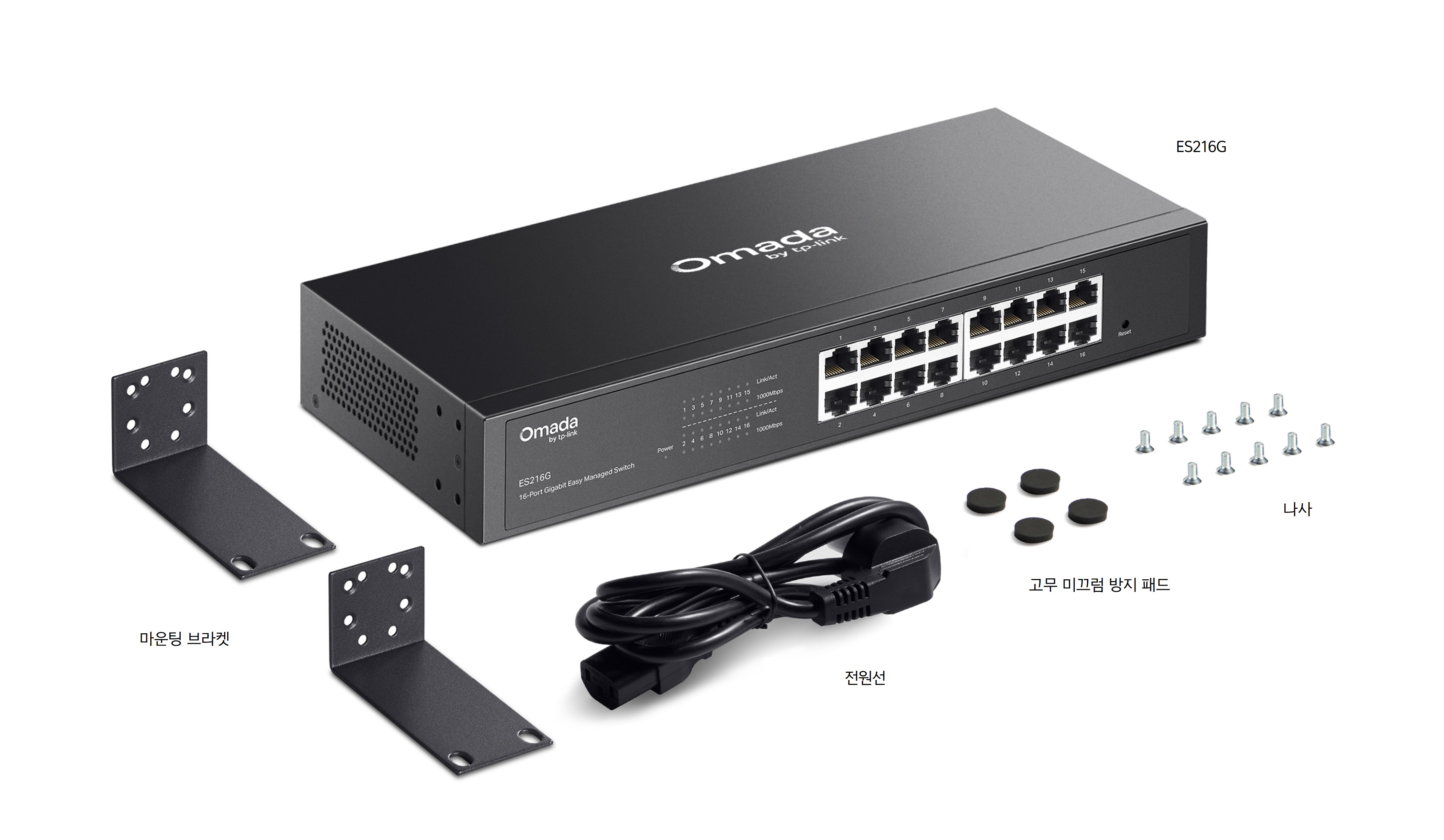

구성품	• ES216G • Power Cord • Rubber Feet • Mounting Brackets • Screws • Installation Guide
사용 환경	• Operating Temperature: -5℃~50℃ (23℉~122℉) • Storage Temperature: -40℃~70℃ (-40℉~158℉) • Operating Humidity: 10%~90% non-condensing • Storage Humidity: 5%~90% non-condensing

추가적인 버전 정보를 원하신다면, 고객지원 페이지로 이동하세요.

^†These functions require the use of the Omada Controller. Zero-Touch Provisioning requires the use of the Omada Cloud-Based Controller (Omada Cloud Standard or Omada Cloud Essentials). Go to the Omada Cloud-Based Controller (Omada Cloud Standard) Product List or Omada Cloud Essentials Product List to find all the supported models.

^△Cable Test and Port Qos are supported under Standalone Mode.
