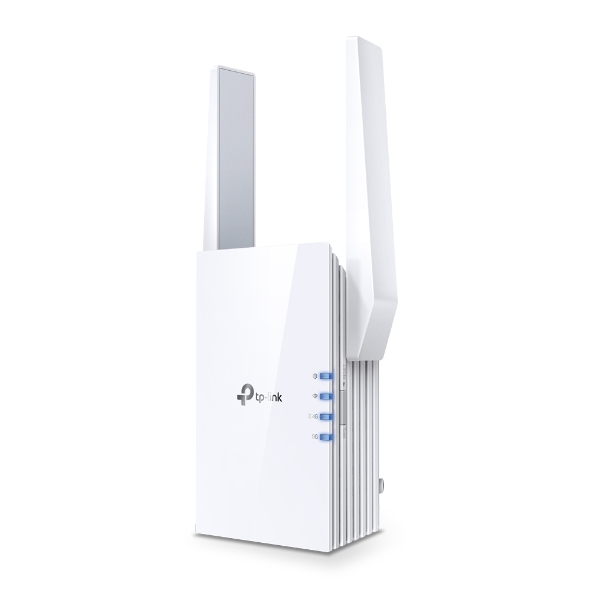

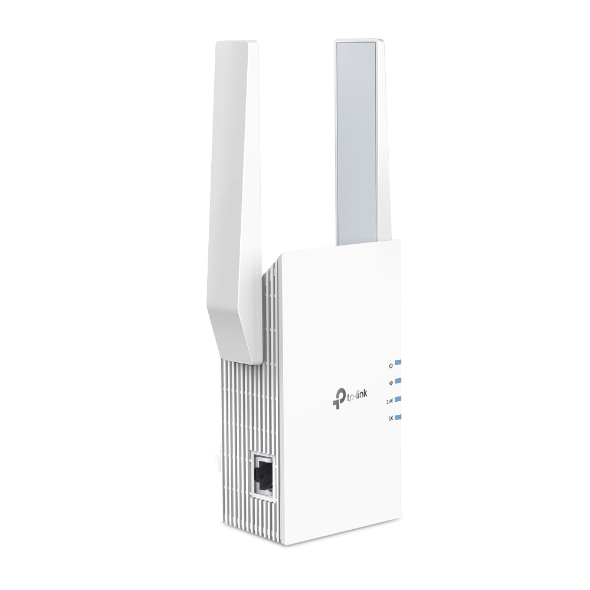

RE705X
NovoExtensor AX3000 Mesh WiFi 6
- Dual-Band WiFi 6 - Separa as bandas WiFi de 5 GHz (2402 Mbps) e 2,4 GHz (574 Mbps) para velocidades mais rápidas e maior capacidade com a mais recente tecnologia
- Streaming Ininterrupto - Criar facilmente uma rede TP-Link OneMesh™ para uma cobertura WiFi doméstica completa sem descontinuidades
- Modo AP - Crie um novo ponto de acesso WiFi através da porta Gigabit Ethernet para melhorar a sua rede com fios com capacidade WiFi
- Porta Ethernet Gigabit - Fornece acesso com fios de alta velocidade, ideal para TVs, PCs e consolas de jogos inteligentes
- Gestão através App - Configuração e gestão fácil com a sua rede utilizando a aplicação TP-Link Tether
Cover Every Corner with
Blazing Fast WiFi 6
AX3000 WiFi 6 Range Extender
RE705X
1000 M
Ethernet Port
AX3000
Extremely-Fast WiFi
2402 Mbps
5 GHz 574 Mbps
2.4 GHz
Works with any WiFi router1
160 MHz Bandwidth
Streaming Network for
Multi-Devices
Dual Band
MU-MIMO2
OneMesh™
Life in the fast lane with advanced WiFi6
WiFi 6 comes with it all: faster speeds, lower latency, and more connections. It also features 25% faster data throughput compared with last-gen WiFi thanks to 1024-QAM. With this speed boost, experience high-speed and stable WiFi throughout your rooms.
25 % faster
Double Channel Speed3 with HE160
Higher Efficiency, Lower Latency
Supports 2x2 160MHz on the 5G band, enjoys wider bandwidth and faster speed than the traditional 80MHz.
2×2
160MHz
2×2
80MHz
4 high-performance amplifiers, we got you covered
Enjoy 4K streaming and gaming in whatever room you’re in thanks to RE705X’s 4 high-performance amplifiers. Whether you’re sharing a pad with friends or living in your forever home, RE705X sends out strong signals to those hard-to-cover areas.
OFDMA4
More efficient data.
Orthogonal Frequency Division Multiple Access helps integrate the data of different end devices for higher efficiency.
WiFi 6
OFDMA
Data Transmitted
WiFi 5
OFDM
Data Transmitted
Beamforming
Strong, targeted WiFi.
Find the direction of your phone or laptop, and accelerate your signal strength.
Beamforming
None
Adaptive Path Selection
Keeps your network running at top speed by automatically choosing the fastest connection path to the router.
Without Adaptive Path Selection
Flexibly Create Whole Home Mesh WiFi
If you have any dead zones at home, just add another Easymesh-Compatible router/range extender to further form your whole home multi-gigabit mesh WiFi. No more searching for a stable connection.
-
EasyMesh Devices
(Router + Range Extender) -
Traditional Router
with Extender Wi-Fi
-
WiFi Dead Zone Killer
Eliminate weak signal areas with WiFi coverage for the whole house
-
Smart Roaming
Uninterrupted streaming when moving around your home
-
One WiFi Name
No more switching WiFi network names
Wide.
Wider.
Widest.5
Keep your internet focused on a single room or blanket an entire floor with WiFi by picking between 3 strength levels on the Tether app.
Built-In
Access Point Mode
RE705X is more than a wireless range extender. Simply plug an Ethernet cable into its Ethernet port, and easily turn your wired internet connection into a 2×2 MU-MIMO dual band wireless access point.
Control at Your Fingertips
Set up and manage your WiFi through the TP-Link Tether app from your phone (Android, iOS), including TP-Link routers and range extenders.
- 1Power Indicator
- 2Signal indicator
- 32.4 GHz Indicator
- 45 GHz Indicator
- 5Reset
- 6WPS Button
- 7Gigabit Port
| WIRELESS | |
|---|---|
| Working Modes | Range Extender / Access Point |
| CARACTERÍSTICAS DE HARDWARE | |
|---|---|
| Ports | 1 Gigabit Ethernet Port |
| Botão | WPS Button, Reset Button |
| Potência de Entrada Energia | 100-240V~50/60Hz |
| Consumo de energia | 12.6W |
| Dimensões (L x P x A) | 97*46*158 |
| Antena | 2 External Antennas |
| FUNCIONALIDADES WI-FI | |
|---|---|
| Normas Wireless | IEEE 802.11a/n/ac/ax 5GHz, IEEE 802.11b/g/n/ax 2.4GHz |
| Frequências | 2.4GHz and 5GHz |
| Signal Rate | 574 Mbps at 2.4GHz, 2402 Mbps at 5GHz |
| Working Modes | Range Extender / Access Point |
| Reception Sensitivity | 5GHz: 11a 6Mbps:-97dBm11a 54Mbps:-78dBm11ax HE20 MCS0: -97dBm 11ax HE20 MCS11: -66dBm11ax HE40 MCS0: -94dBm 11ax HE40 MCS11: -62dBm11ax HE80 MCS0: -91dBm 11ax HE80 MCS11: -61dBm 11ax HE160 MCS11: -59dBm 2.4GHz: 11g 6Mbps:-96dBm11g 54Mbps:-78dBm11ax HE20 MCS0: -95dBm 11ax HE20 MCS11: -66dBm11ax HE40 MCS0: -93dBm 11ax HE40 MCS11: -62dBm |
| Funções Wireless | Enable/Disable Wireless RadioDFS (the latest firmware and hardware version is required)Access ControlLED ControlPower ScheduleWi-Fi Coverage |
| Segurança Wireless | WEP, WPA, WPA2, WPA3 |
| Transmission Power | CE: 2.4GHz ≤16dBm, 5GHz ≤21dBm |
| Mesh Technology | EasyMesh-Compatible |
| OUTROS | |
|---|---|
| Certificações | CE, RoHS |
| Conteúdo da embalagem | Wi-Fi Range Extender RE705X Quick Installation Guide |
| Requisitos de Sistema | Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, 8, 8.1, 10, MAC OS, NetWare, UNIX or Linux Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser |
| Temperatura e Humidade | Operating Temperature: 0℃~40℃ (32℉ ~104℉)Storage Temperature: -40℃~70℃ (-40℉ ~158℉)Operating Humidity: 10%~90% non-condensingStorage Humidity: 5%~90% non-condensing |
1.O produto pode não ser compatível com routers ou gateways com firmware que tenha sido alterado, seja baseado em programas de código aberto, ou não seja normalizado ou desatualizado.
2.A utilização de MU-MIMO requer que os clientes também suportem MU-MIMO.
3.Necessita de ser utilizado na banda de frequência 5G com equipamento que suporte 160MHz
4.Requer clientes AX compatíveis com o suporte DL-OFDMA e UL-OFDMA.
5.A opção máxima é activada por defeito.
A velocidade real da rede pode ser limitada pela taxa da porta Ethernet WAN ou LAN do produto, a taxa suportada pelo cabo de rede, factores do fornecedor de serviços Internet e outras condições ambientais.
TP-Link EasyMesh-Compatible produtos podem trabalhar em rede com outros dispositivos que utilizam EasyMesh. As ligações falhadas podem ser devidas a conflitos de firmware de diferentes fornecedores. A função EasyMesh-Compatible ainda está a ser desenvolvida em alguns modelos e será suportada em actualizações de software subsequentes.
